Mounting Crossed Roller Bearings Correctly: Step-by-Step

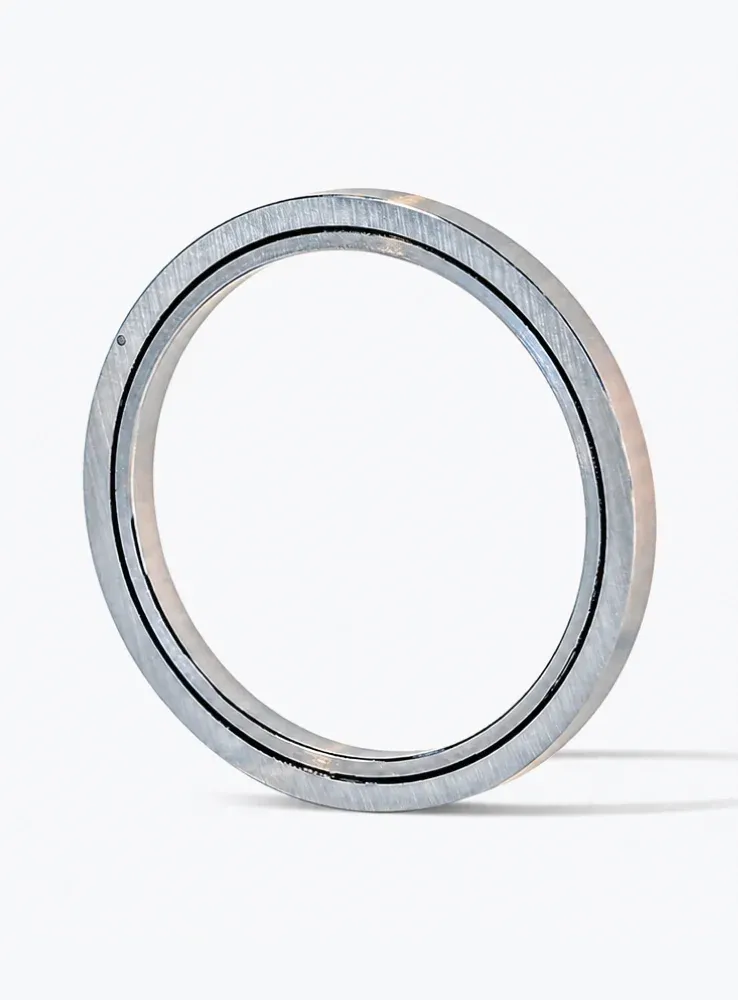

Crossed roller bearings are used in robot joints, precision rotary stages, and CNC indexing tables, where a fraction of a micron of deviation changes performance. Unlike deep groove ball bearings, the cylindrical rollers here travel on crossed V-shaped raceways, which delivers high stiffness and rotational accuracy while making the bearing unusually sensitive to misalignment, shock loads, and contamination. Mounting it correctly is not merely good practice; it decides whether the bearing reaches its rated life or fails early through fretting, raceway brinelling, or cage fracture. The following sections walk through preparation, press fitting, preload, and verification to help you avoid the most damaging mistakes.

Why Crossed Roller Bearings Tolerate Mounting Errors Poorly

Compared with a standard radial bearing, a crossed roller bearing distributes load through alternating roller axes seated between two V-groove raceways. This design gives it high tilting stiffness and high radial and axial capacity in a compact cross-section. The same geometry, however, leaves very little margin for error.

Alternating Roller Arrangement and Its Consequences

Adjacent rollers are turned 90 degrees to one another, each making contact on a ground V-shaped raceway. When the bearing is pressed in at an angle, load concentrates on a small number of rollers during the first rotation. Under that concentrated pressure, raceway surfaces can brinell, creating permanent indentations that no later alignment can reverse. The damage shows up as torque ripple, running noise, and loss of accuracy, often progressing to complete failure after thousands of hours.

Fits and Preload: Mounting Decisions, Not Bearing Specifications

Crossed roller bearings are often supplied with either clearance or preload, but the running value is largely determined at installation. A press fit that is too tight squeezes the raceways and raises friction; one that is too loose lets the inner or outer ring creep under load, generating fretting wear debris. Correct mounting means choosing fits that hold the rings without distorting them, and that balance depends on housing material, wall thickness, and operating temperature, not on the bearing tolerance grade alone.

Preparation Before Mounting: Dimensions, Cleanliness, and Handling

Most mounting failures begin before the bearing leaves its package. Three preparation steps determine whether the rest of the process succeeds.

Verify Shaft and Housing Dimensions

Measure the shaft journal and housing bore with micrometers or a coordinate measuring machine before scheduling a press fit. Check roundness, cylindricity, and whether the shoulder is truly perpendicular to the axis. A tilted shoulder will distort the outer ring when bolts are tightened, producing the same load concentration as a cocked press fit. Both shaft and housing should be verified against a known gauge or master, not merely against the drawing tolerance.

Cleanliness and Deburring

Metal chips, burrs, or grinding dust become an abrasive paste during press fitting. Clean all mating surfaces with lint-free cloths and an approved solvent, then ensure they are fully dry before assembly. Bearings that have been opened should stay in their original packaging until the last moment, and they should never be blown with compressed air, which carries particles directly into the grease.

…

For more details on the proper installation of crossed roller bearings—including a step-by-step guide—please click here: https://www.bobibearing.com/a/bearing-knowledge/mounting-crossed-roller-bearings-correctly.html
