Vibration Motor Installation Method Guide

Installing a vibration motor requires careful attention to alignment, support, and mounting to ensure reliable operation and minimize wear or vibration transmission to unwanted areas.

General guide on vibration motor installation:

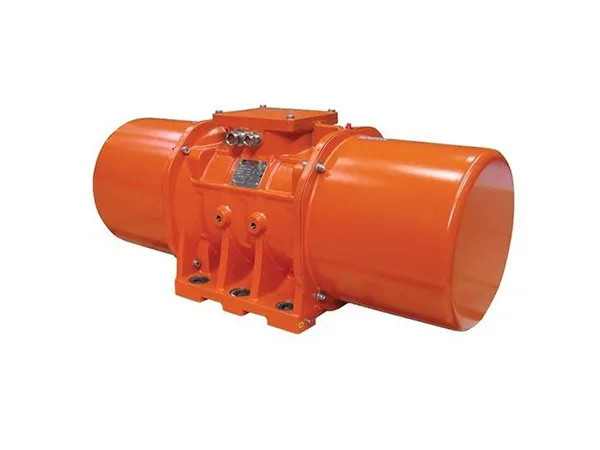

vibration motor

1. Prepare the Installation Surface

Ensure the surface where the motor will be mounted is clean, level, and rigid. Any unevenness or instability in the mounting surface can cause excessive vibration and reduce motor life.

Reinforce the mounting area if necessary, as a strong foundation will help absorb vibration and prevent damage to surrounding equipment.

2. Mounting the Motor

Use bolts that are strong enough for the motor’s size and vibration force. High-grade bolts are recommended to secure the motor tightly.

Place vibration-damping pads or rubber mounts between the motor and the mounting surface to help absorb vibrations and prevent them from transferring to other parts of the machine.

Tighten the bolts evenly to ensure that the motor is securely and uniformly attached. This helps to distribute the load and minimize imbalances.

3. Alignment and Positioning

Align the motor properly with the vibrating equipment to avoid misalignment, which can cause excessive wear and increase vibrations.

Position the motor according to the manufacturer’s recommendations, as improper placement can lead to uneven or excessive vibrations. For example, some setups may require placing the motor at a specific angle or orientation.

Make sure there is sufficient clearance around the motor for maintenance and to allow airflow for cooling.

vibration motor

4. Electrical Connections

Follow the manufacturer’s wiring instructions carefully to connect the motor to the power supply. Make sure to use appropriately rated cables and connectors.

Use cable clamps to secure the wiring to prevent it from being affected by vibrations, which can lead to wear or electrical issues over time.

Ground the motor properly to ensure safety and prevent electrical noise from affecting nearby equipment.
