How does the cylindrical mixer work?

cylindrical mixer, also known as a drum mixer or barrel mixer, is commonly used in various industries for blending and mixing granular or powder materials.

Components

Cylindrical Drum: The main body of the mixer, usually horizontal, which can rotate around its axis.

Motor and Drive System: Powers the rotation of the drum.

Inlet and Outlet: For loading and unloading materials.

Baffles or Mixing Blades: Internal elements that help in mixing by creating turbulence and ensuring thorough mixing.

Cylindrical Mixer Working Principle

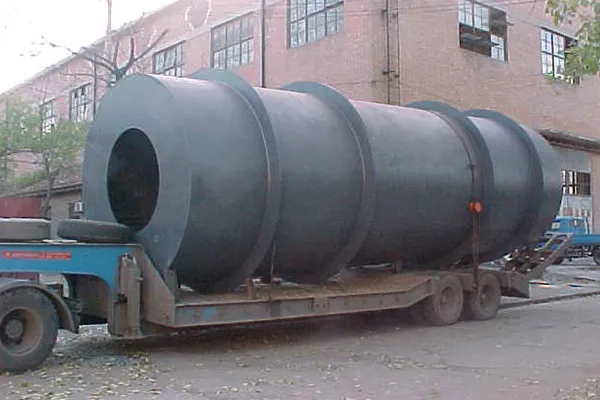

cylindrical mixer

Loading: The materials to be mixed are loaded into the cylindrical drum through the inlet.

Rotation: The motor and drive system rotate the drum around its horizontal axis. The speed of rotation can usually be adjusted to control the mixing intensity.

Mixing Action:

Tumbling: As the drum rotates, the materials inside are lifted up by the rotation and then fall back down due to gravity. This creates a tumbling action.

Shear and Impact: Internal baffles or mixing blades create additional shear forces and impact, enhancing the mixing process. The placement and design of these internal elements are crucial for achieving uniform mixing.

Discharge: After the materials are adequately mixed, the drum is stopped, and the mixture is discharged through the outlet.

Advantages

Uniform Mixing: Provides a high degree of mixing uniformity for powders and granular materials.

Versatility: Suitable for a wide range of materials and applications.

Scalability: Available in various sizes to handle different batch volumes.

cylindrical mixer

Cylindrical Mixer Applications

Pharmaceutical Industry: For mixing powders and granules to ensure uniform distribution of active ingredients.

Food Industry: For blending ingredients, such as spices or additives.

Chemical Industry: For mixing chemicals and compounds.

More detailed information about how the cylindrical mixer works can be found at: https://www.zymining.com/en/a/news/cylindrical-mixer-working-principle.html
